EinScan Rigil | The Tri-Mode Laser 3D scanner

EinScan Rigil | The Tri-Mode Laser 3D scanner

$5,837.00 USD
$5,618.00 USD $5,837.00 USD
āļĨāļ”āļĢāļēāļ„āļē āļ‚āļēāļĒāļŦāļĄāļ”āđāļĨāđ‰āļ§
āļ„āđˆāļēāļˆāļąāļ”āļŠāđˆāļ‡āļ—āļĩāđˆāļ„āļģāļ™āļ§āļ“āđƒāļ™āļ‚āļąāđ‰āļ™āļ•āļ­āļ™āļāļēāļĢāļŠāļģāļĢāļ°āđ€āļ‡āļīāļ™
Color: Black

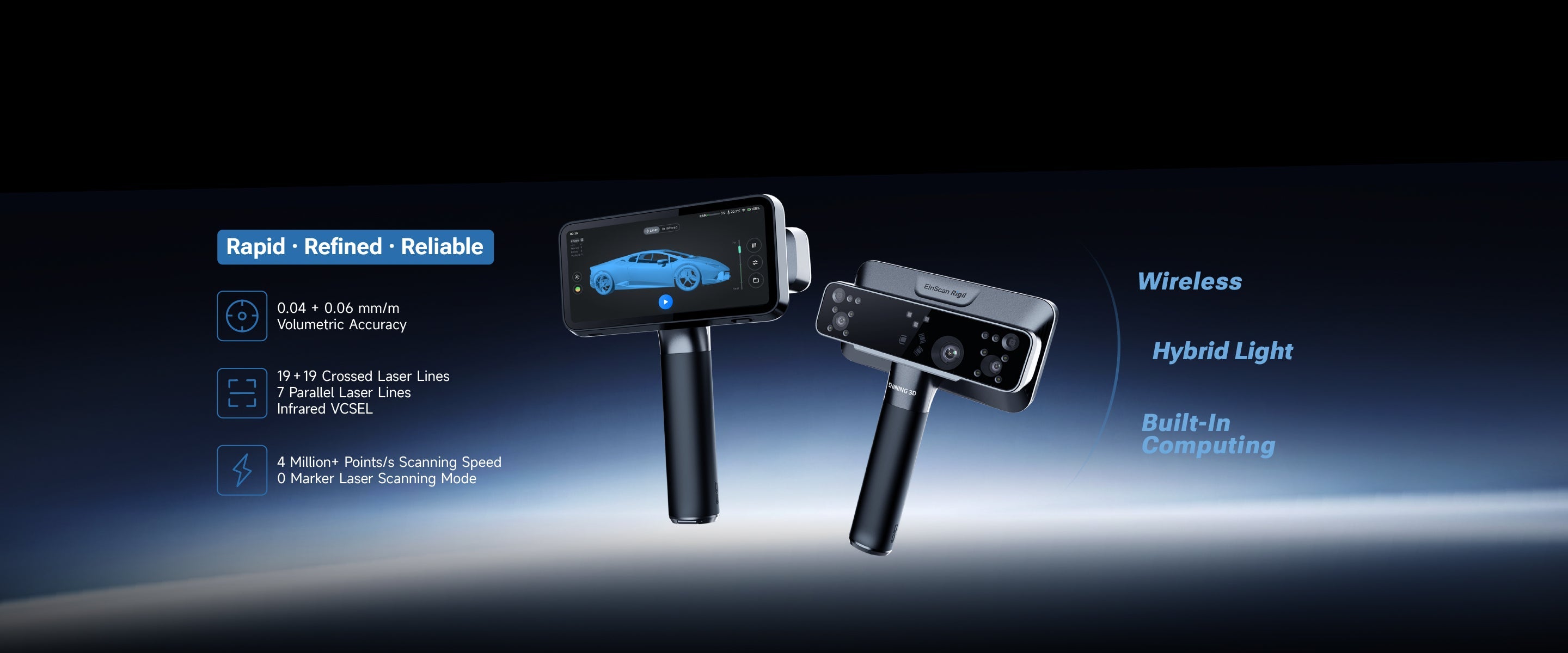

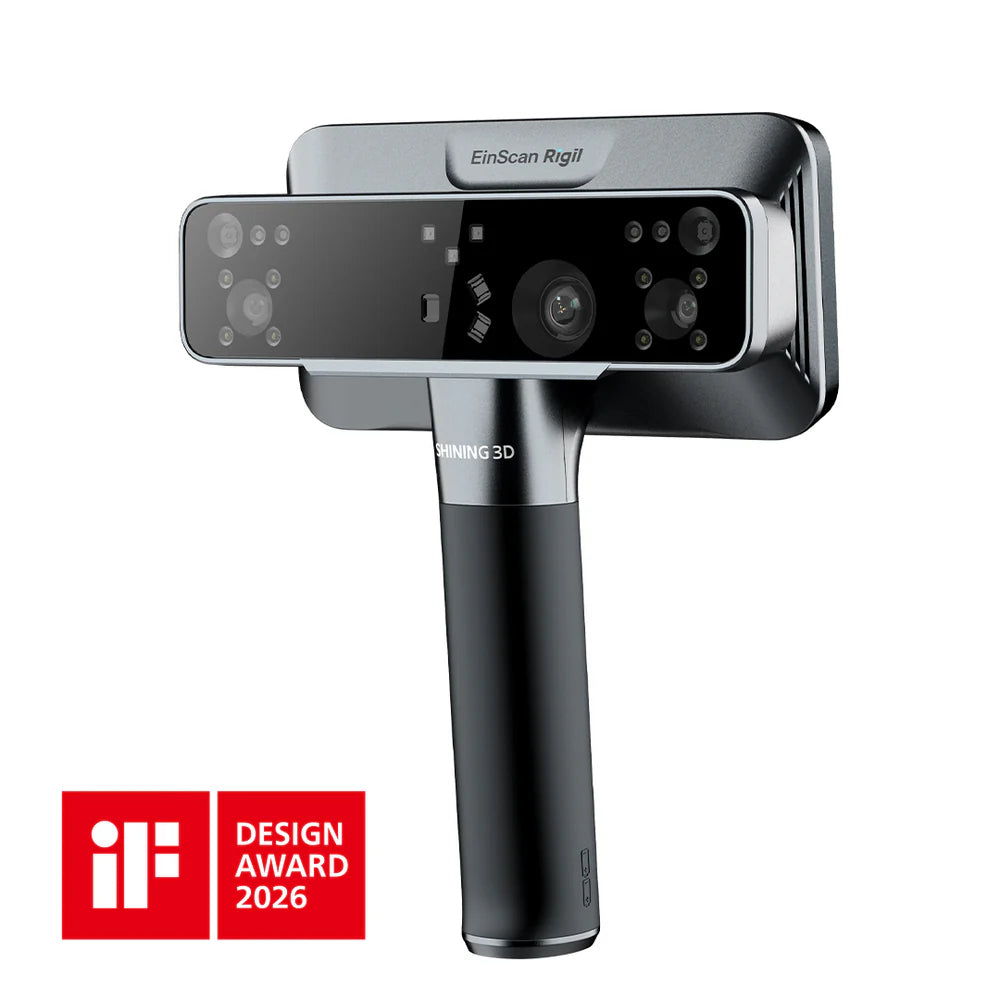

EinScan Rigil: The World's First Tri-Mode Laser 3D Scanner

The EinScan Rigil is the world's first tri-mode Laser 3D Scanner, designed to give professionals a powerful and flexible workflow. This all-in-one device combines built-in computing, wireless connectivity, and a hybrid light source to deliver unparalleled performance.

ETA for the delivery will be in 10-14 days

With its high volumetric accuracy of up to 0.04 + 0.06 mm/m and a high geometric resolution of up to 0.05 mm, the EinScan Rigil captures even the most complex geometries and surfaces with incredible detail. It also features marker-free laser scanning and a 5MP full-color texture camera, allowing you to work efficiently in any environment.

The EinScan Rigil is the ideal solution for anyone who needs precision, speed, and versatility in their 3D scanning projects.

  • Tri-Mode Operation: Provides standalone, wireless PC, and wired PC modes.
  • Metrology-Grade Accuracy: Delivers high precision with volumetric accuracy of up to 0.04 + 0.06 mm/m.
  • Hybrid Light Source: Combines crossed and parallel blue laser lines with an IR VCSEL for versatile scanning.

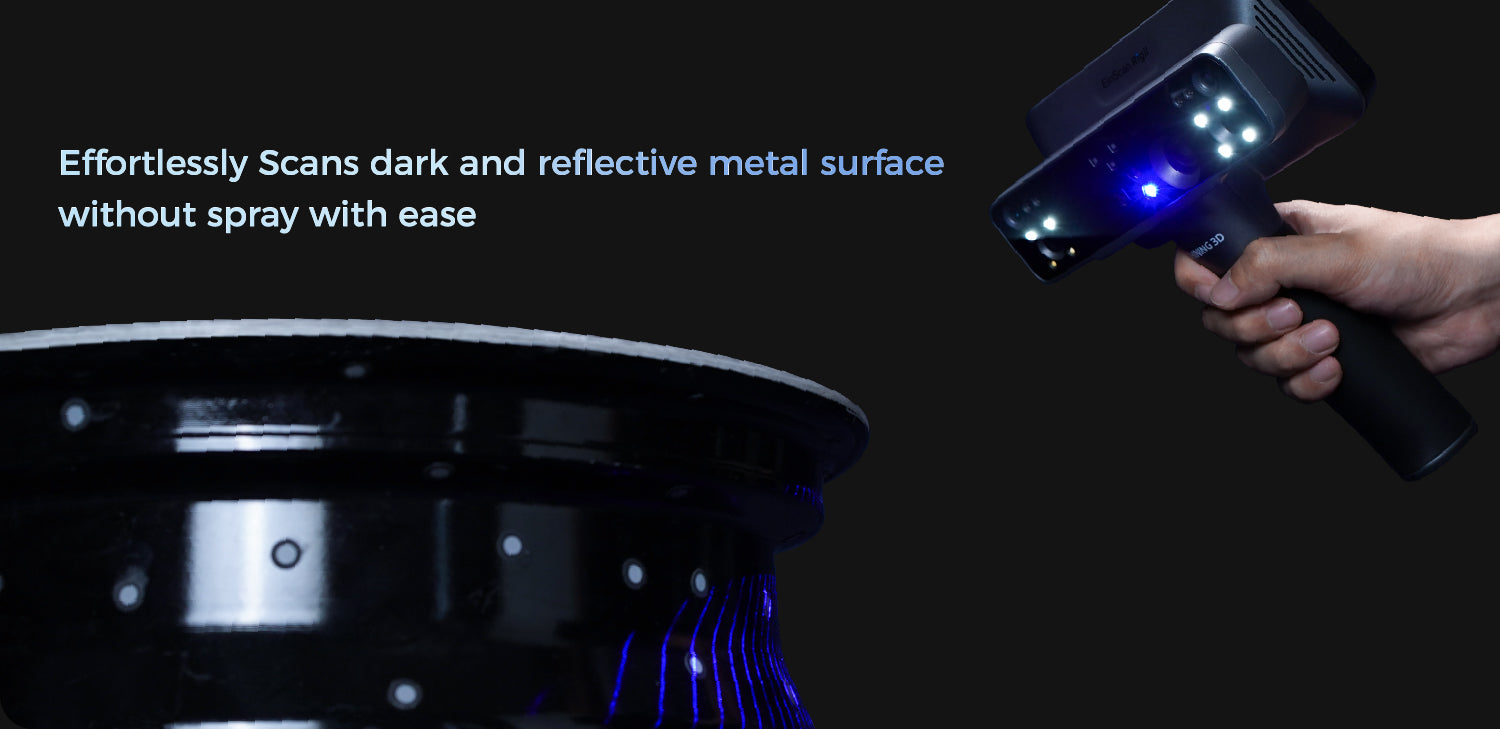

  • Marker-Free Scanning: Advanced algorithms enable marker-free blue laser scanning, even on dark or reflective surfaces.
  • Full-Color Texture Scanning: Equipped with a 5MP camera to capture high-quality color details.

Taxes excluded. Direct shipping from Oversea Supplier* The recipient is responsible for customs clearance, duties, and any other applicable fees.

Main Features

  • Tri-Mode Operation: Provides standalone, wireless PC, and wired PC modes.
  • Metrology-Grade Accuracy: Delivers high precision with volumetric accuracy of up to 0.04 + 0.06 mm/m.
  • Hybrid Light Source: Combines crossed and parallel blue laser lines with an IR VCSEL for versatile scanning.
  • Marker-Free Scanning: Advanced algorithms enable marker-free blue laser scanning, even on dark or reflective surfaces.
  • Full-Color Texture Scanning: Equipped with a 5MP camera to capture high-quality color details.

Dimensions & Weight

Scanner Size: (H*D*W) 233 × 180 × 72.8 mm

Scanner Body: 870 g (batteries included)

Operating system

No computer required for 3d scanning operation;
StarVision(Data processing program on PC): Processor: 13th Gen IntelÂŪ Coreâ„Ē i7-13700H or above;

Graphics Card:
NVIDIA GeForce RTX 3060 Laptop GPU or above

VRAM: 8 GB or above;

RAM: 64 GB or above, DDR5 dual-channel;

Interface: USB 3.0;

Operating System:
Windows 11 Professional 22H2

āļ”āļđāļĢāļēāļĒāļĨāļ°āđ€āļ­āļĩāļĒāļ”āļ—āļąāđ‰āļ‡āļŦāļĄāļ”

Triple Work Modes

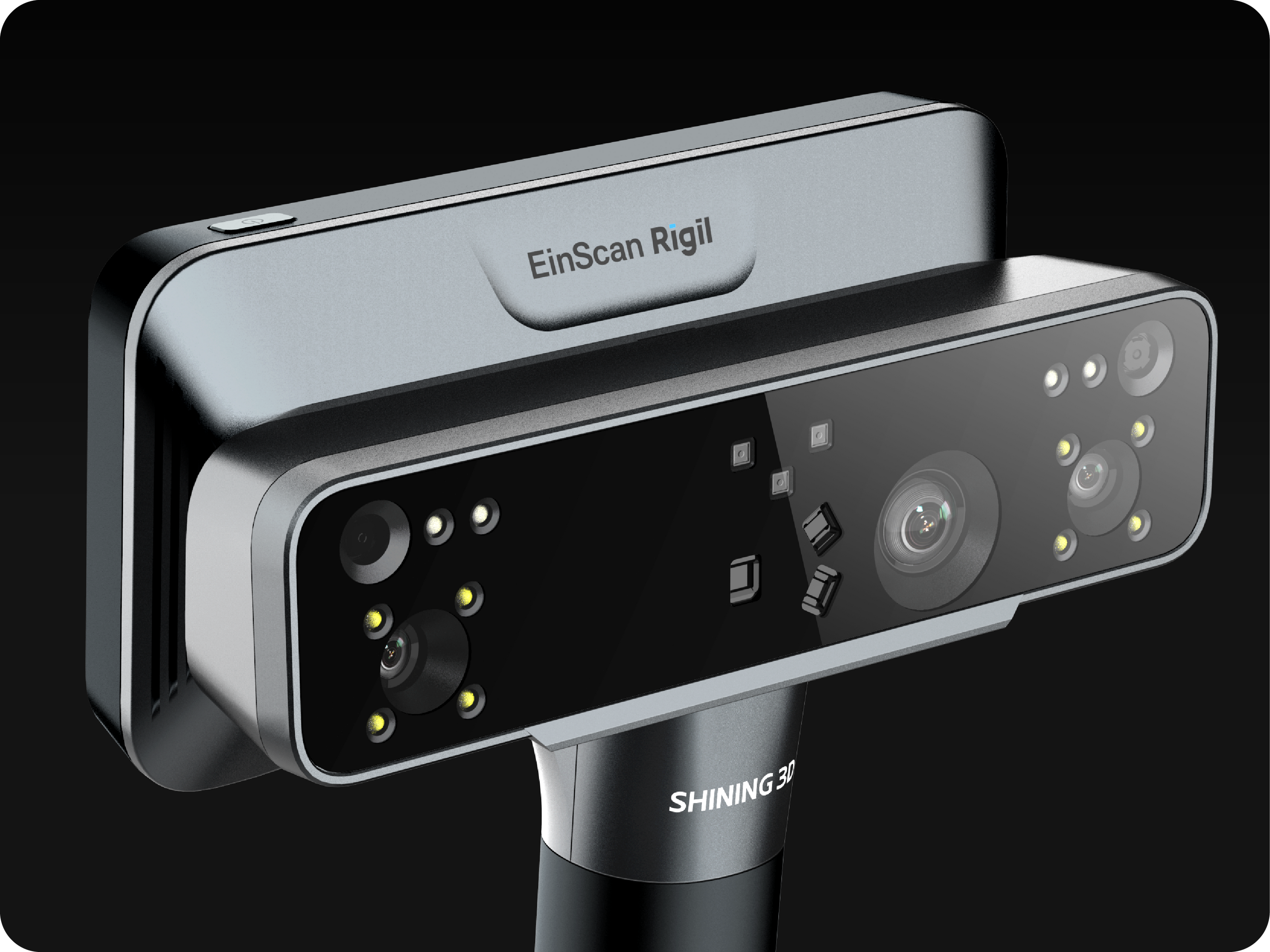

  • 2 Separate Groups of Camera and Projectors

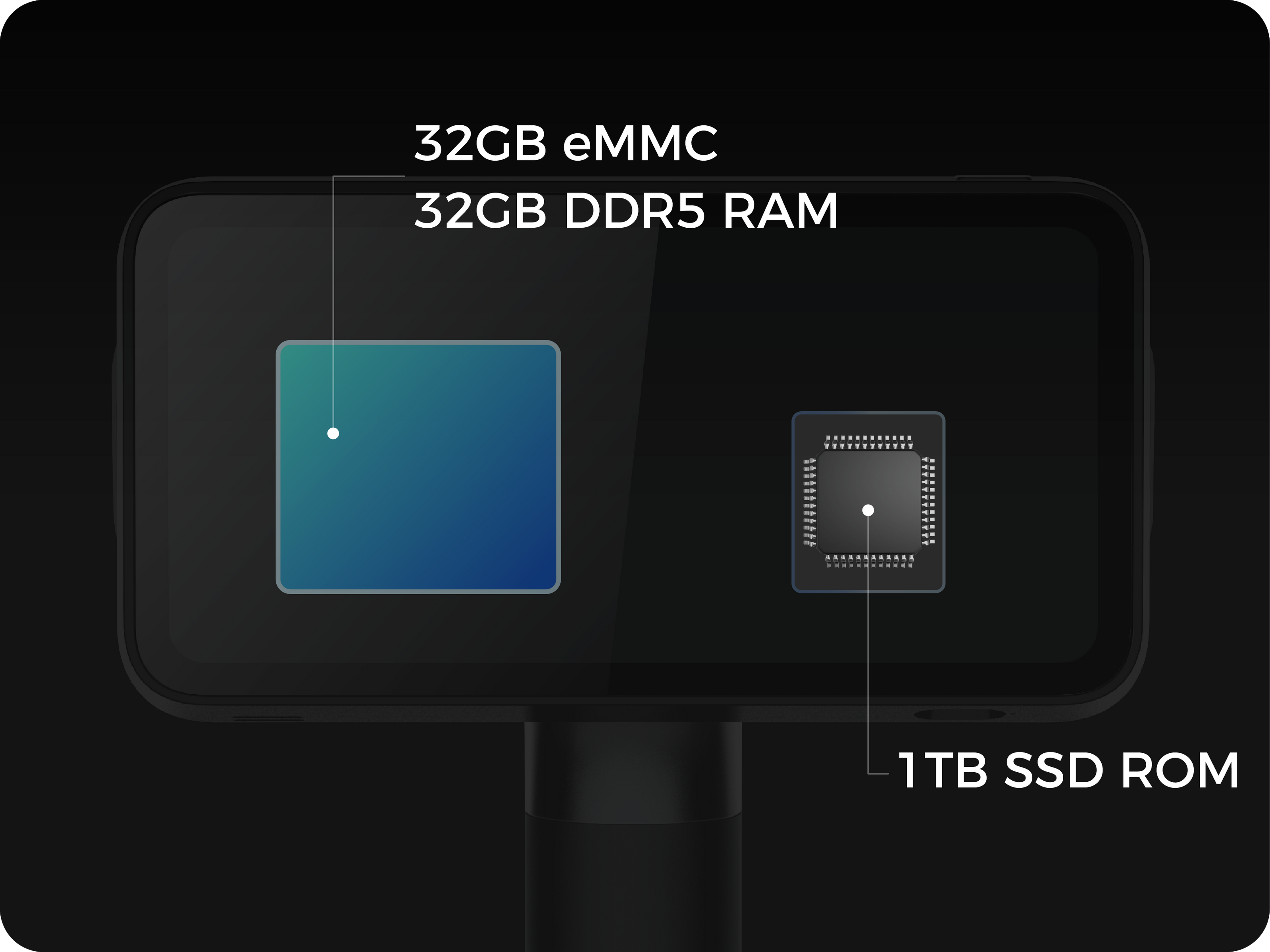

  • 32GB DDR5 RAM, 32GB MMC & 1TB SSD ROM

  • Built-in 2 x 5500mAh Replaceable Batteries

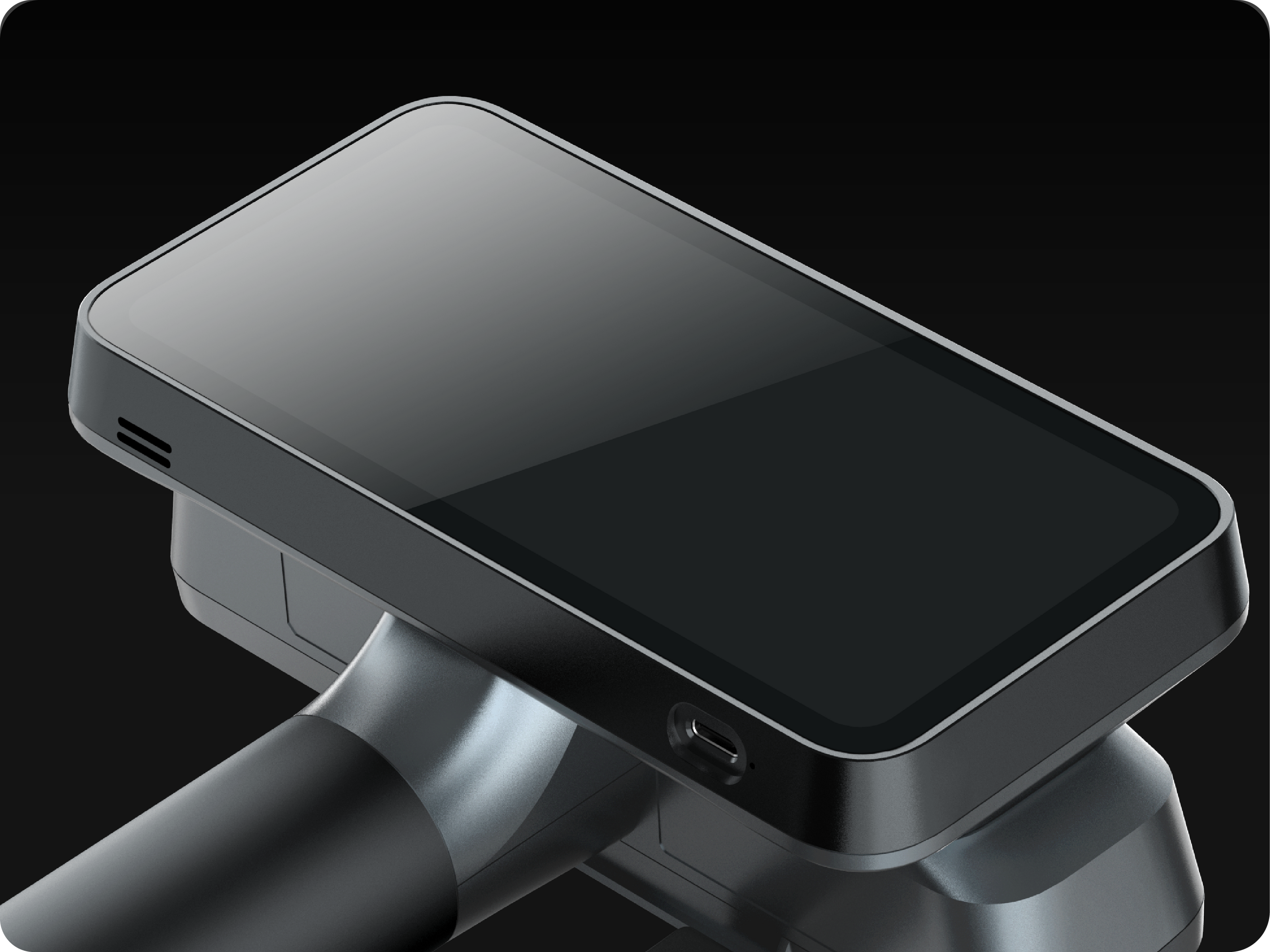

  • 604" 2K AMOLED Touchscreen

1 4

Triple Work Modes

  • Standalone Mode:

    No PC connection required, all scanning and processing tasks are completed directly on the hardware, delivering exceptional portability and ease of use.

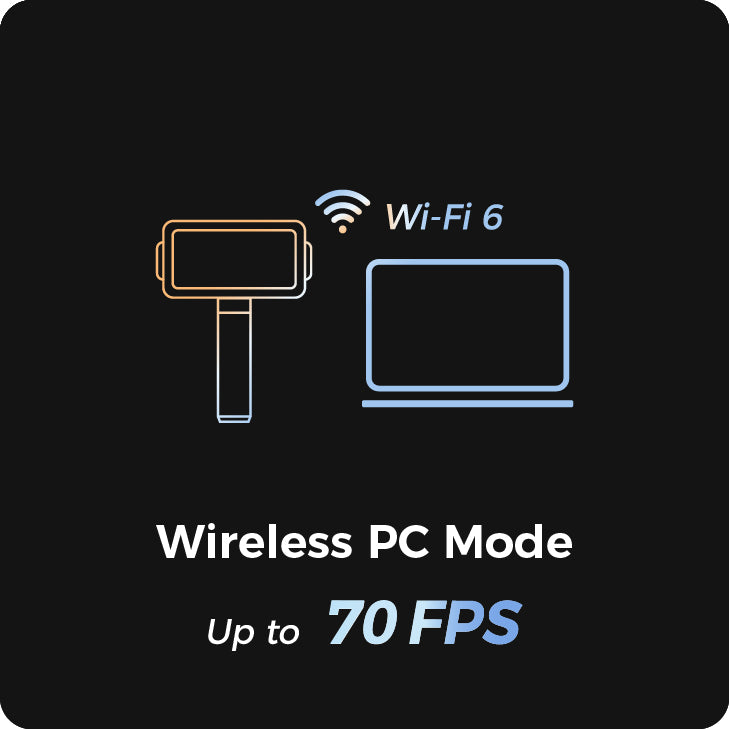

  • Wireless PC Mode:

    Leveraging built-in Wi-Fi 6, this mode enables seamless wireless scanning and allows connection to a powerful computer, optimizing performance for complex tasks and large data volume.

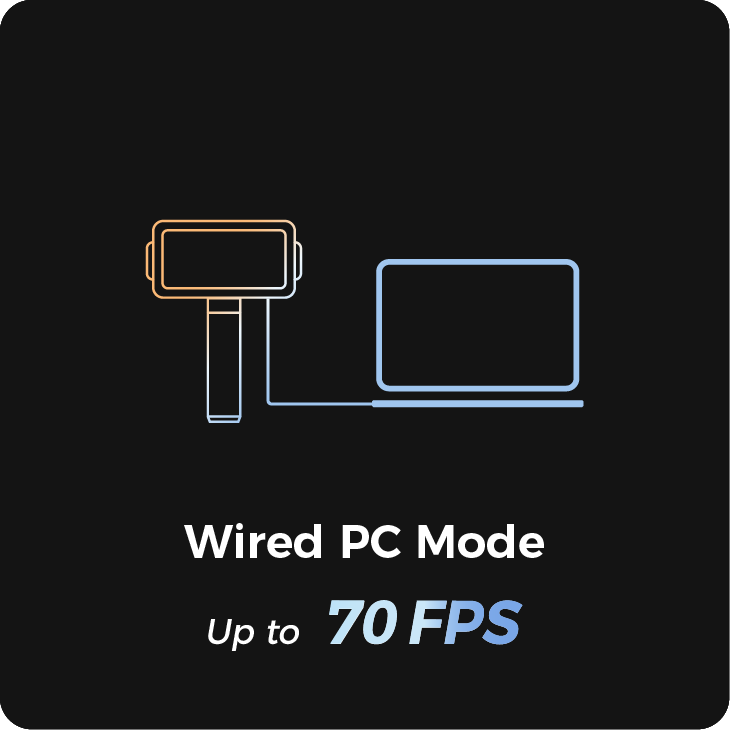

  • Wired PC Mode:

     Maintaining availability and maximum scanning speed and data volume in complex network environments.

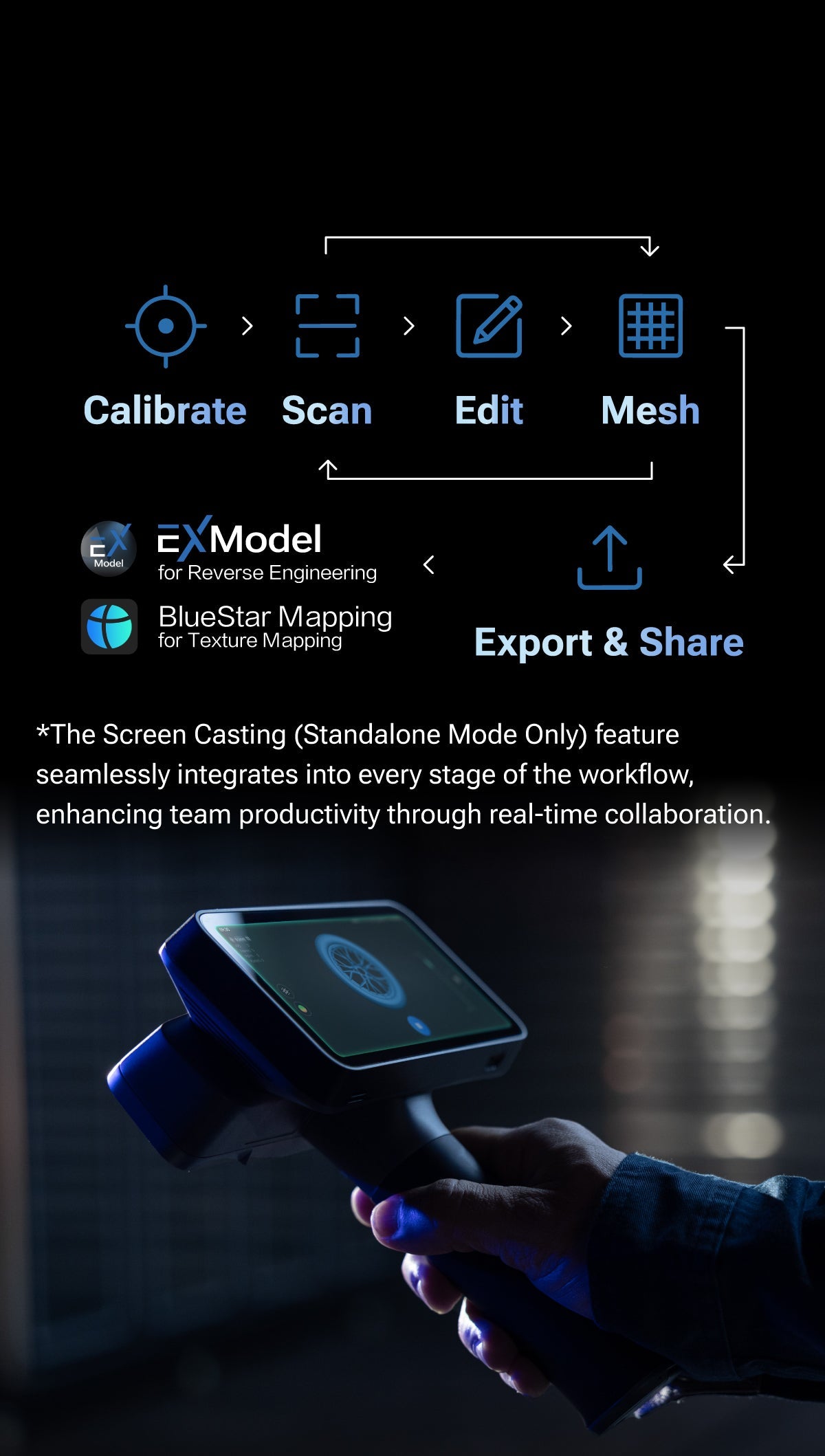

  • Free PC software:

    EXScan Rigil is dedicated PC software with rich editing functions for the EinScan Rigil scanner, supporting the full professional workflow from scanning and editing to export. Paired with the scanner, it offers stable, flexible, and high-quality scanning.

1 4

EinScan Rigil by Shining 3D

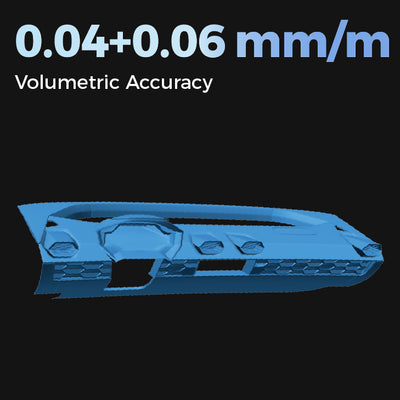

0.04+0.06 mm/m  Volumetric Accuracy

With 20 years of experience in developing metrology 3D scanning technology, SHINING 3D maintains strict accuracy calibration standards and is dedicated to practicing and advocating truthful accuracy in 3D scanning to deliver reliable and consistent results.

EinScan Rigil by sining 3d

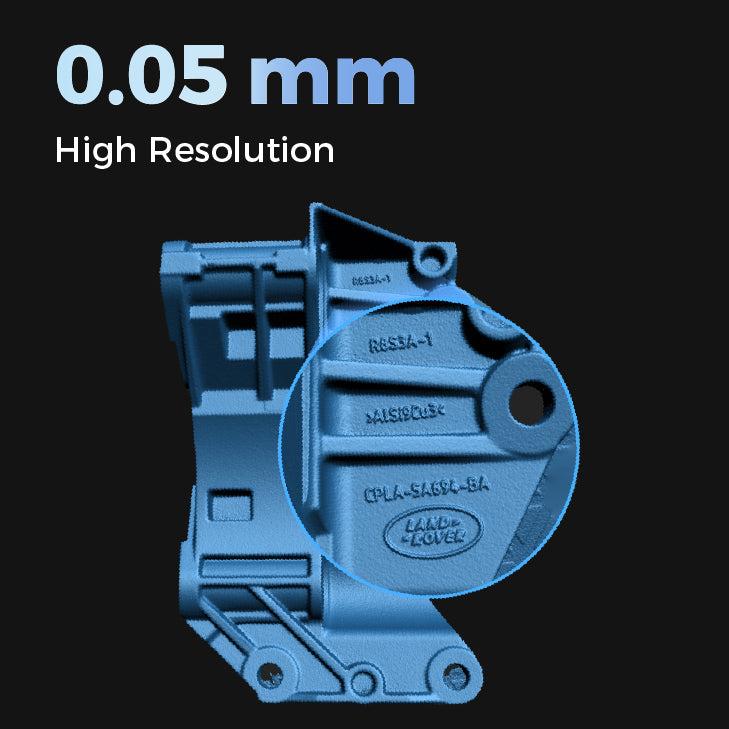

0.05 mm High Resolution

Resolution up to 0.05 mm

einscan rigil by shining 3d

5MP Full Color Texture Scanning

EinScan Rigil is equipped with a 5MP high-definition camera that can restore high-quality texture details, allowing designers, engineers and artists to maintain high-fidelity modeling and rendering during the digitization process, providing more precise information for subsequent analysis and creation.

sinscan rigil by shining 3d

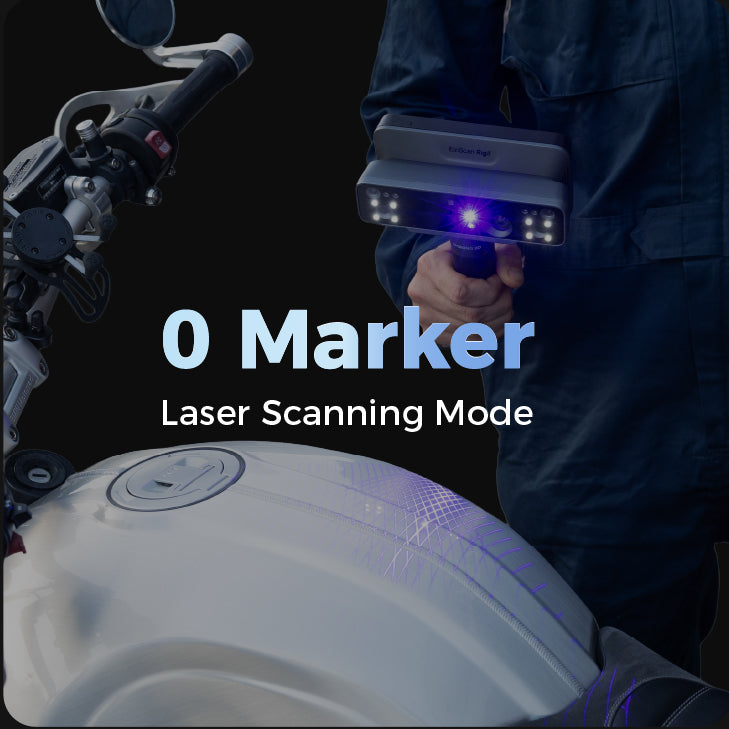

Marker-Free  Laser Scanning

EinScan Rigil features a special tracking algorithm, which provides marker-free blue laser scanning through a Laser + IR hybrid scan mode, currently available in EXScan Rigil software. This enables better efficiency than traditional marker-based laser scanning and better data quality than marker-free IR scanning

sinscan rigil by shining 3d

For Prosumer, For Automotive

EinScan Rigil is designed to comprehensively address the 3D modeling needs of consumers in the automotive aftermarket industry.
It significantly enhances efficiency in generating high-quality 3D models, combining fast scanning capabilities, streamlined professional workflows, lightweight computing solutions, and rich data editing functions.

1 3

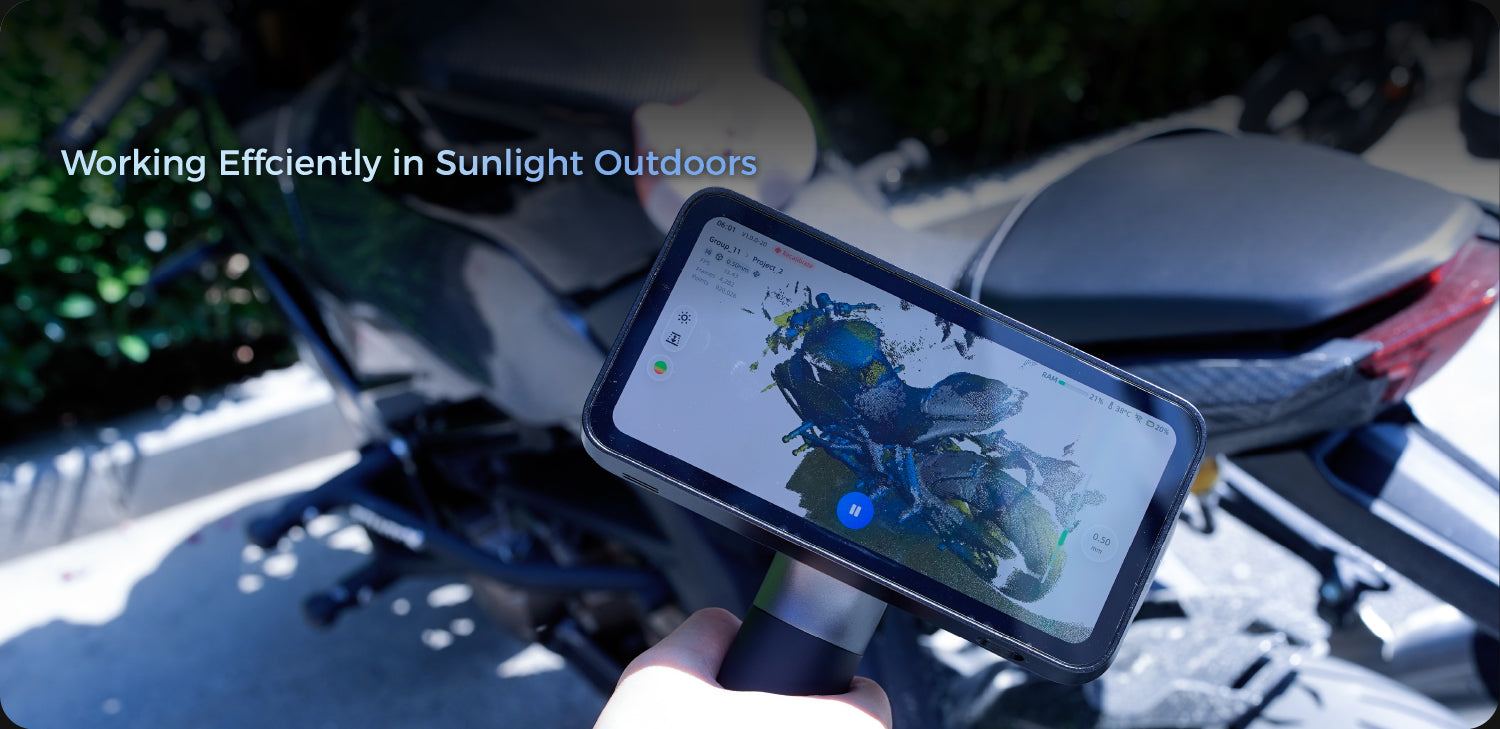

EinScan Rigil marker-free motorcycle

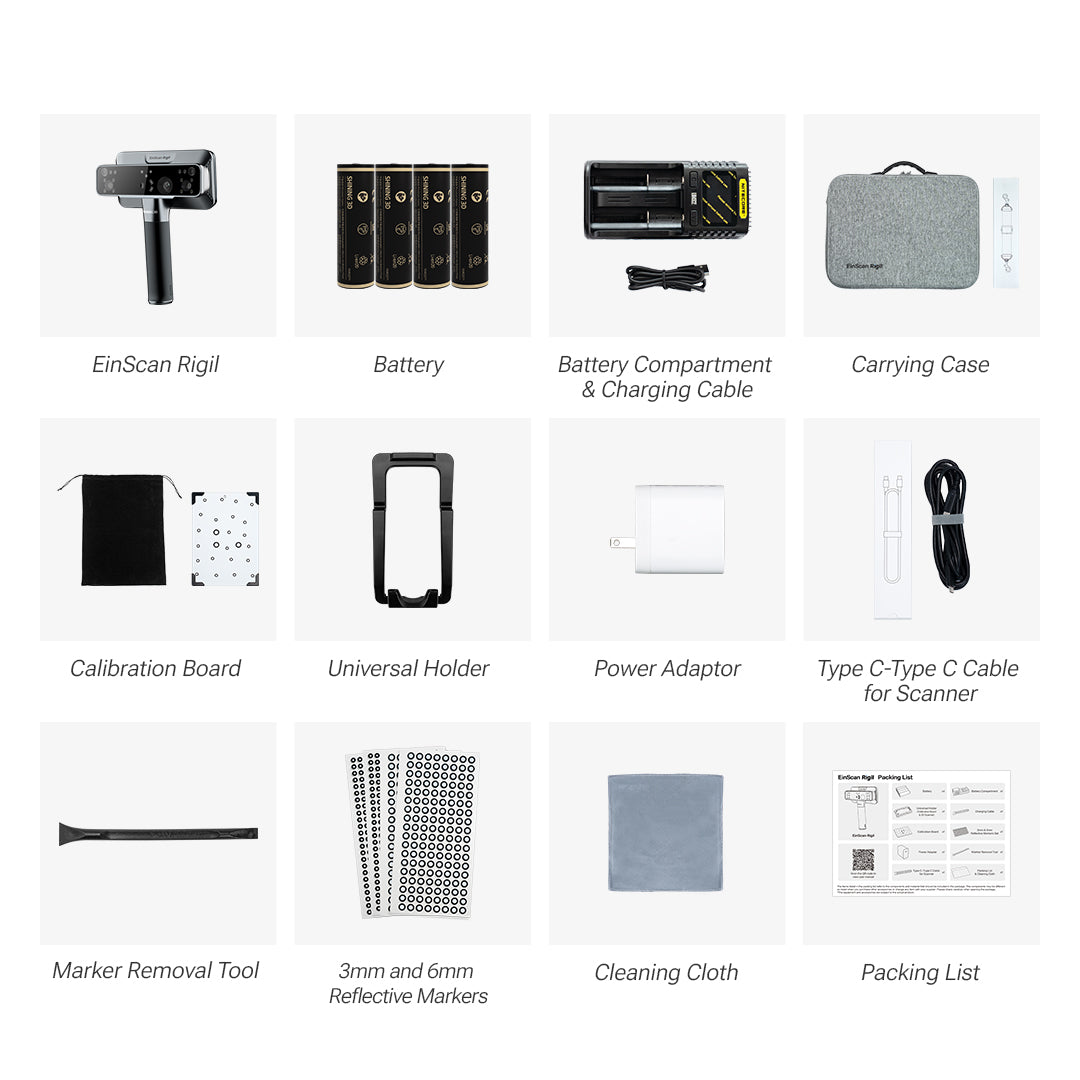

Whats in the Box?

  • SHINING 3D 3D Scanner EinScan Rigil | The Tri-Mode Laser 3D scanner [Pre-Order]
1 2

EINSTAR VEGA Specification

Work Mode Wireless Standalone; For extra computing resourceïžšPC- Wireless / PC-Wired
Scan Mode Laser HDIR; Rapid
Light Source 19+19 crossed blue laser lines; 7 blue laser parallel lines; IR VCSEL
Resolution Laser HDïžš0.05 ~ 10 mm; IR Rapidïžš0.2 ~ 10 mm
Scan Speed 19 crossed laser linesïžš4,400,000 points/s; 7 blue laser parallel linesïžš940,000 points/s; IR Rapidïžš1,600,000 points/s
Working Distance Laser HDïžš170 ~ 550 mm; IR Rapidïžš160 ~ 1500 mm
Align Mode Laser HDïžšGlobal Markers / Markers / Features / Hybrid; aIR RapidïžšGlobal Markers / Markers / Features / Texture / Hybrid
Volumetric  Accuracy Laser HDïžšUp to 0.04 + 0.06 mm/ m; IR RapidïžšUp to 0.1 + 0.4 mm/m
Camera Resolution 3Dïžš2.3MP*2 1.3MP*2; Textureïžš5MP
Output Formats STL, OBJ, PLY, 3MF, ASC
Laser Class Laser HDïžšClass II; IR Rapidïžš/
Hardware CPUïžš8 core, 2.4GHz ; 32GB eMMC+ 1TB SSD ROM; 32GB DDR5 RAM;  6.4”2K AMOLED Touch Screen
Operation  Conditions Temperature -10℃ ~ 40℃
Certifications CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
Recommended  Configurations for PC Processor: 13th Gen IntelÂŪ Coreâ„Ē i7-13700H or above; Graphics Card: NVIDIA GeForce RTX 3060 Laptop GPU or above; VRAM: 8 GB or above; RAM: 64 GB or above, DDR5 dual-channel; Interface: USB 3.0; Operating System: Windows 11 Professional 22H2
Interface & Power  Source USB Type-C; Battery 5500mAh*2; Support 60W-PD3.0 Charger
Dimension (H*D*W) 233 × 180 × 72.8 mm
Net Weight 870 g (batteries included)

FAQs

Why we choose EinScan Rigil

EinScan Rigil is designed to comprehensively address the 3D modeling needs prosumers in automotive aftermarket. It significantly enhances efficiency in generating high-quality 3D models, combining fast scanning capabilities, streamlined professional workflows, lightweight computing solutions, and rich data editing functions.

What are the three modes of this product means?

EinScan Rigil has three working modes:

  • Standalone Mode-all scanning and processing tasks are completed directly on the hardware, delivering exceptional portability and ease of use.
  • Wireless PC Mode-Leveraging built-in Wi-Fi 6, this mode enables seamless wireless scanning and allows connection to a computer for maximum computing power, optimizing performance for complex tasks.
  • Wired PC Mode-connect to PC with USB type-C cable, maintaining availability and maximum stability in complex network environments or under restricted network conditions.

Can different laser lines be switched during the scanning process

EinScan Rigil's 19+19 crossed laser lines and 7 parallel laser lines are switchable during scanning process, and data captured by each mode can be merged together, to achieve speed and detail in one scanning project

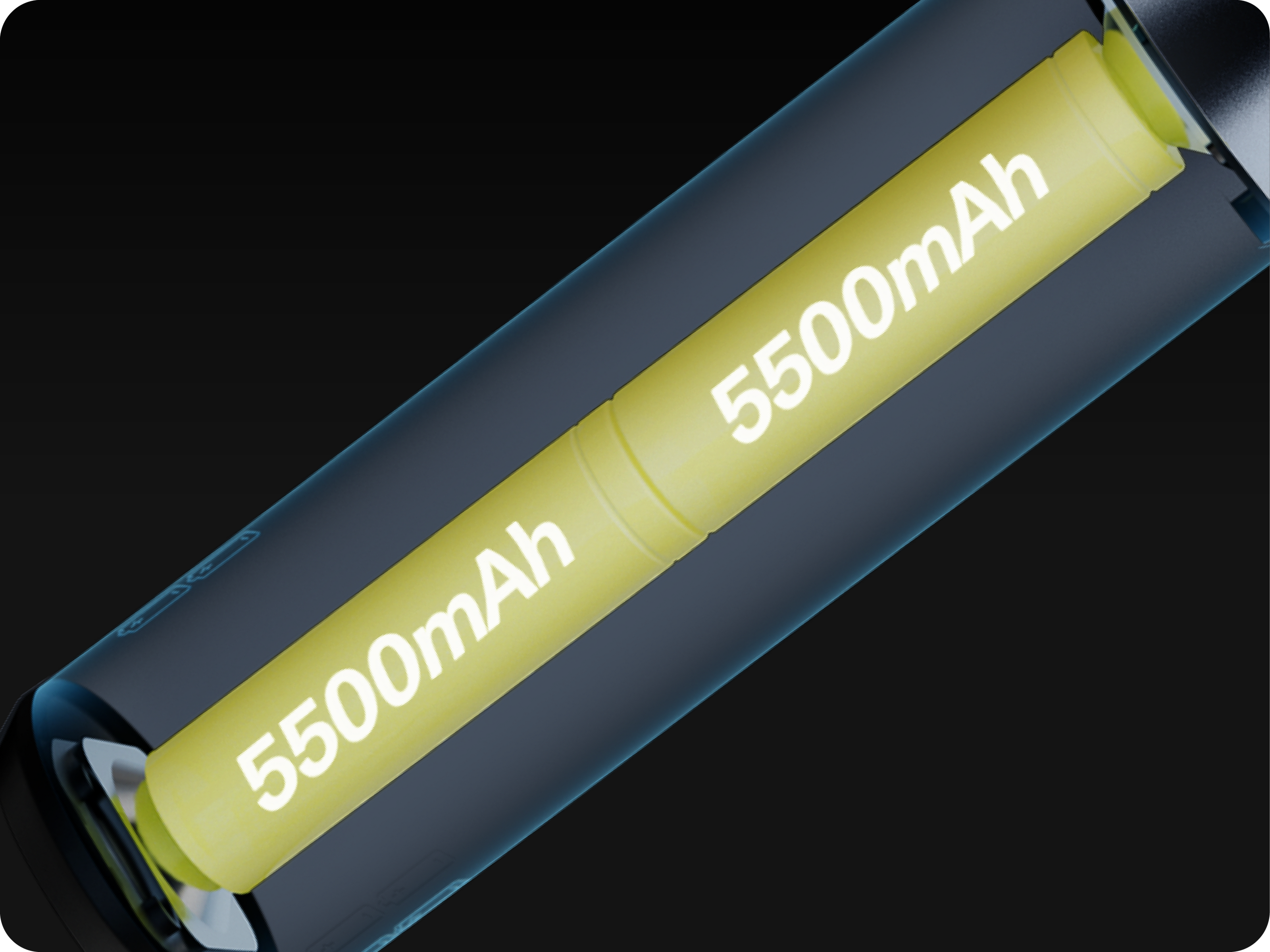

The device is powered by 2 x 5500mAh replaceable batteries, which can be quickly replaced (but currently does not support hot swapping). It also supports usb type-c power supply while charging and using simultaneously.

What is the device power supply method?

The device is powered by 2 x 5500mAh replaceable batteries, which can be quickly replaced (but currently does not support hot swapping). It also supports usb type-c power supply while charging and using simultaneously.

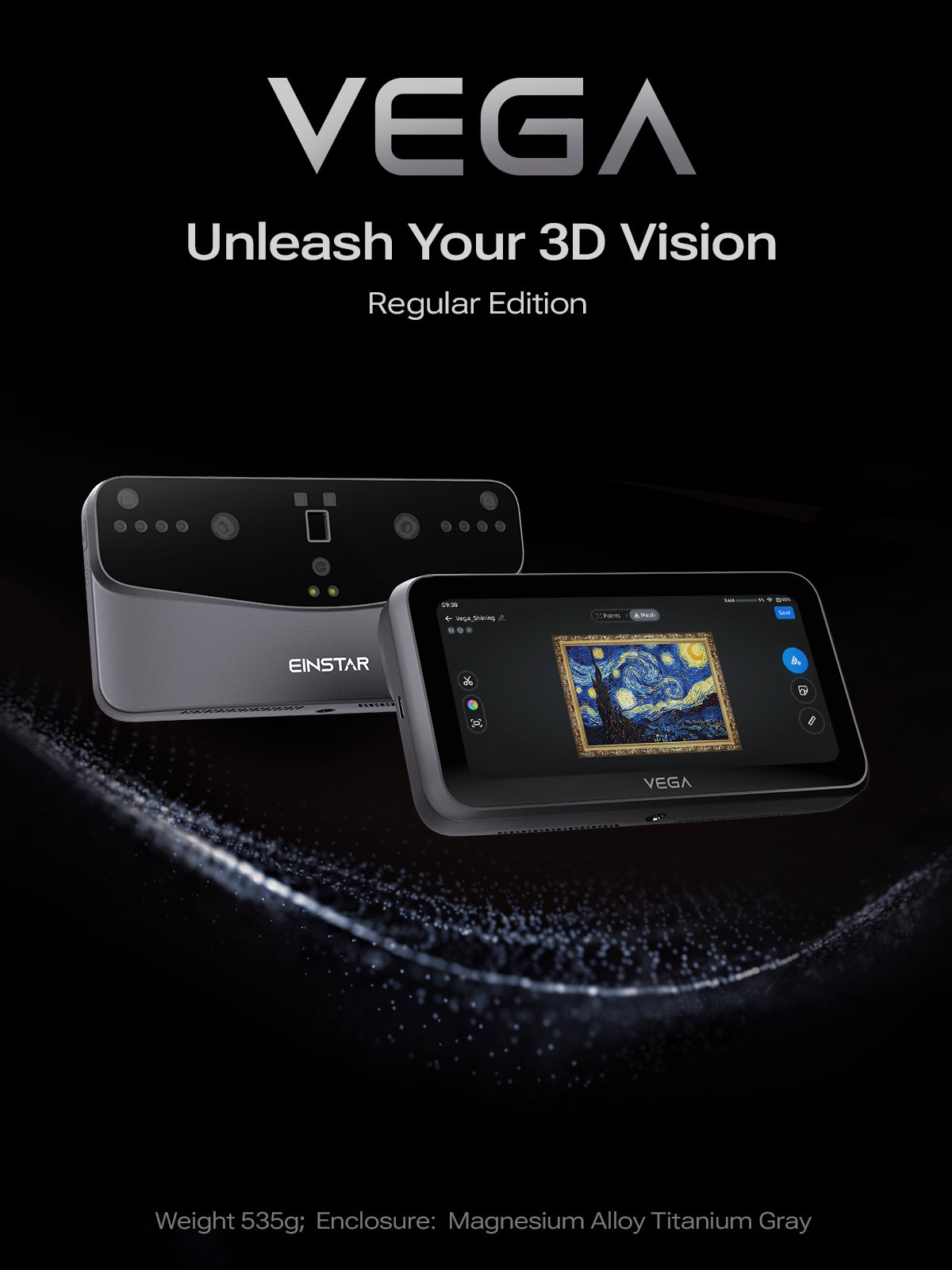

A portable, wireless 3D scanner designed for ultimate convenience.
