EinStar VEGA Wireless All-In-One 3D Scanner - SHINING 3D

EinStar VEGA Wireless All-In-One 3D Scanner - SHINING 3D

$2,859.00 AUD
$3,099.00 AUD $2,859.00 AUD
Sale Sold out
Shipping calculated at checkout.
Color: Titanium Gray

In stock

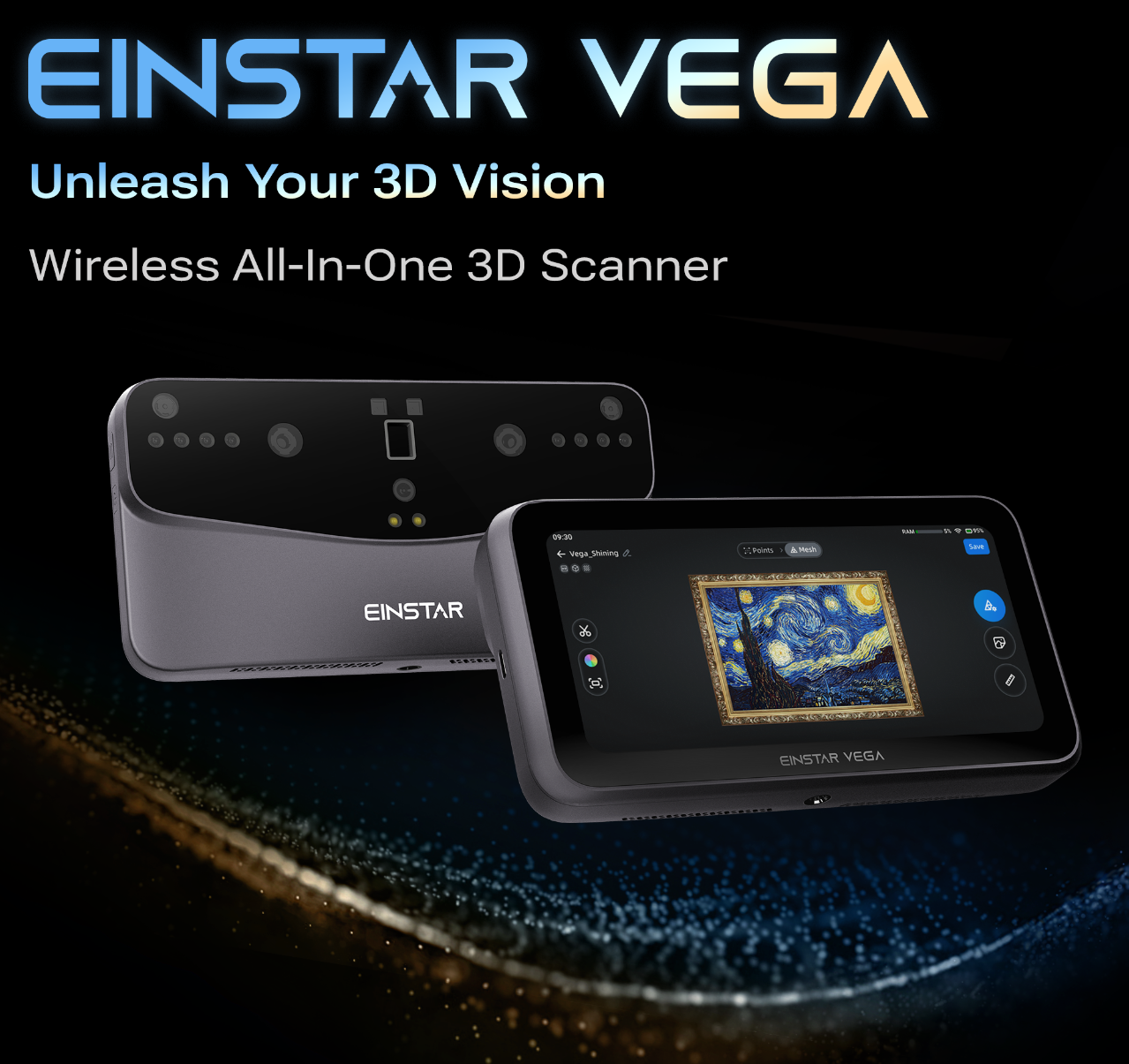

EINSTAR VEGA is a portable and easy to use wireless one

Integral 3D scanner with interactive touch screen and interior

A computing module can be installed independently without external devices

Scanning tasks, suitable for a variety of scenarios of high quality three

Dimensional modelling and data sharing.

Main Features

Wireless All-In-One 3D Scanner

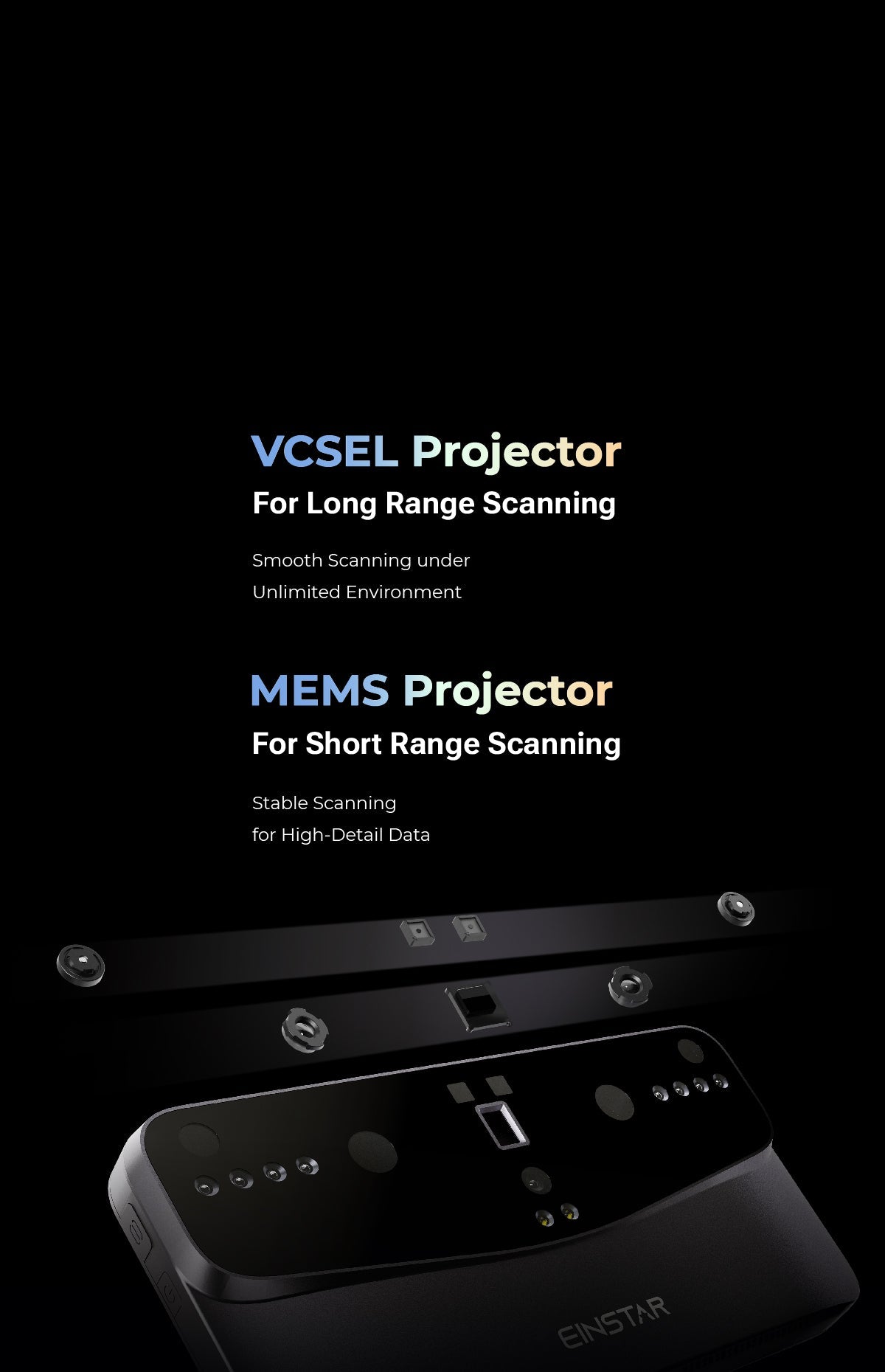

  • Two Scanners in One: VCSEL+ MEMES
  • Wireless Scanning & Screen Casting & Cloud Sharing

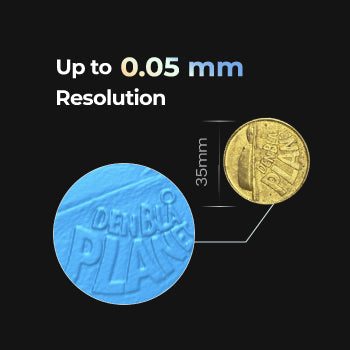

  • 0.05mm High Resolution & 48MP High Quality Texture
  • 32GB Built-in Computing & 512GB SSD Internal Data Archiving

Dimensions & Weight

Scanner Size: 380mm x305mm x 155mm

Scanner Body: 535g

Operating system

No computer required for 3d scanning operation;
StarVision(Data processing program on PC): Windows10/11(64-bit), macOS.
Recommended PC configuration: Intel i7, 32 GB RAM; macOS 11.0(on Apple chip)

  • 1-Year Warranty
  • 14-day Return Policy
  • Fast Delivery Time
View full details

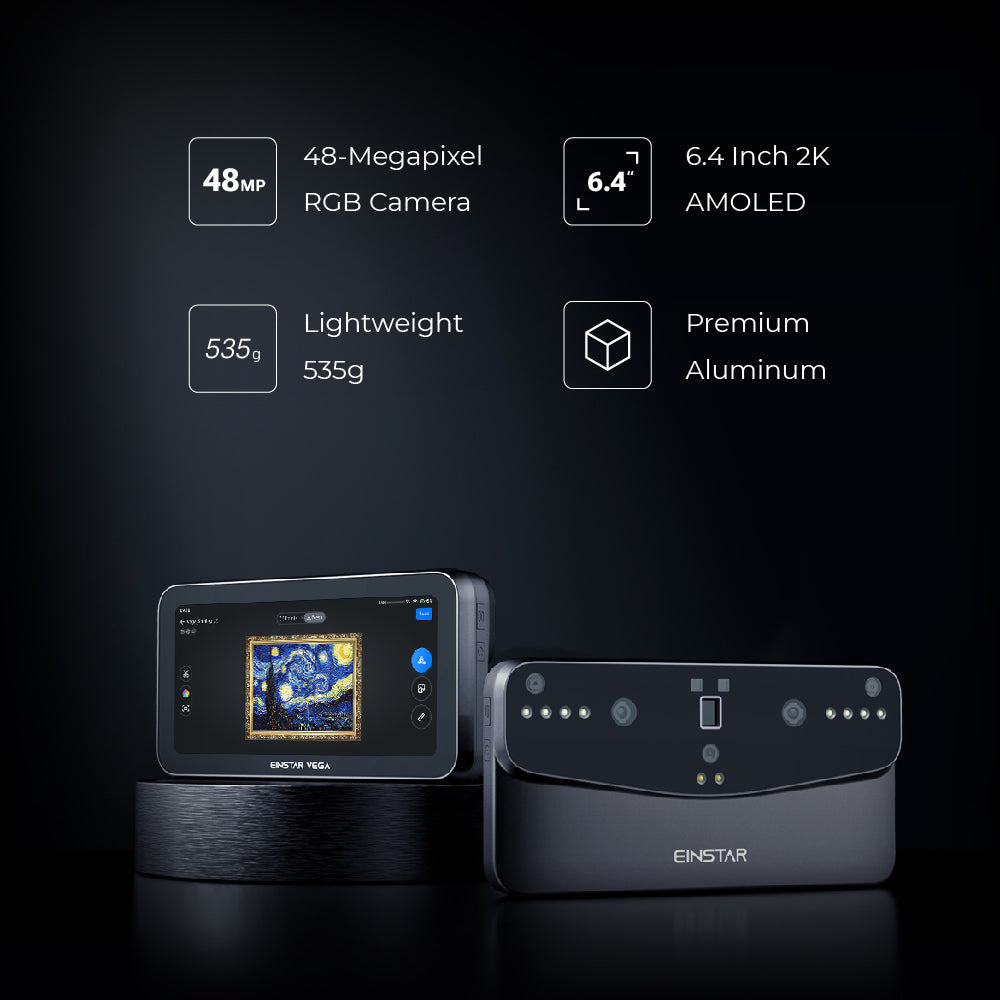

EINSTAR VEGA closer look

EINSTAR VEGA Specification

Scan Mode HD Mode; Fast Mode
Point Distance HD Mode: 0.05mm～3mm; Fast Mode: 0.5mm~10mm
Light Source HD Mode: Infrared MEMS; Fast Mode: Infrared VCSEL
Capture Frame HD Mode: up to 15 fps; Fast Mode: up to 20fps
Working Distance HD Mode: 100-350mm; Fast Mode: 270-1500mm
IR Camera Resolution HD Mode: 2MP; Fast Mode: 1.3MP
Align Mode Feature; Texture; Markers; Hybrid
Color Camera Resolution 48 MP
Output Formats ply; stl; obj; asc
Outdoor Scan Yes
Scanner Body Weight 535g
Scanner Size 180mm*95mm*26.5mm(L*W*H)
CPU 8-core CPU, 2.4GHz
RAM 32 GB LPDDR4 Memory
Internal Hard Drive 32GB eMMC + 512GB SSD
Power Charger 65W fast charging, supports PD/PPS protocols
Interface Wi-Fi 6, USB Type C
Touchscreen 6.4'' 2K OLED
Supplemental Light 10
IMU 6 DoF
Operating Temperature Range -10~40℃
Operating Humidity Range 0 to 90% RH (non-condensing)
Packing Size 380*305*155mm
Protection Grade IP50
Battery Built-in 5000mAh；External power bank charging supported
Supported OS No computer required for 3d scanning operation;StarVision（Data processing program on PC）：Windows10/11(64-bit); macOSRecommended PC configuration: Intel i7, 32 GB RAM; macOS 11.0 ( on Apple chip )

FAQs

Do I need any PC connection to use?

You can perform post-processing directly on the Vega. However, for more detailed processing (0.05 ～ 0.1 mm), you might need to use a computer.

What is the working ambient temperature range?

The working temperature range is -10°C to 40°C.

How long does it work by its battery?

The continuous working time is 1.5 ～ 2 hours. You can also connect it to a power bank for extended use.

Looking for a 3D Scanner that easy to handle?

The Most affordable prosumer 3D scanner ever!

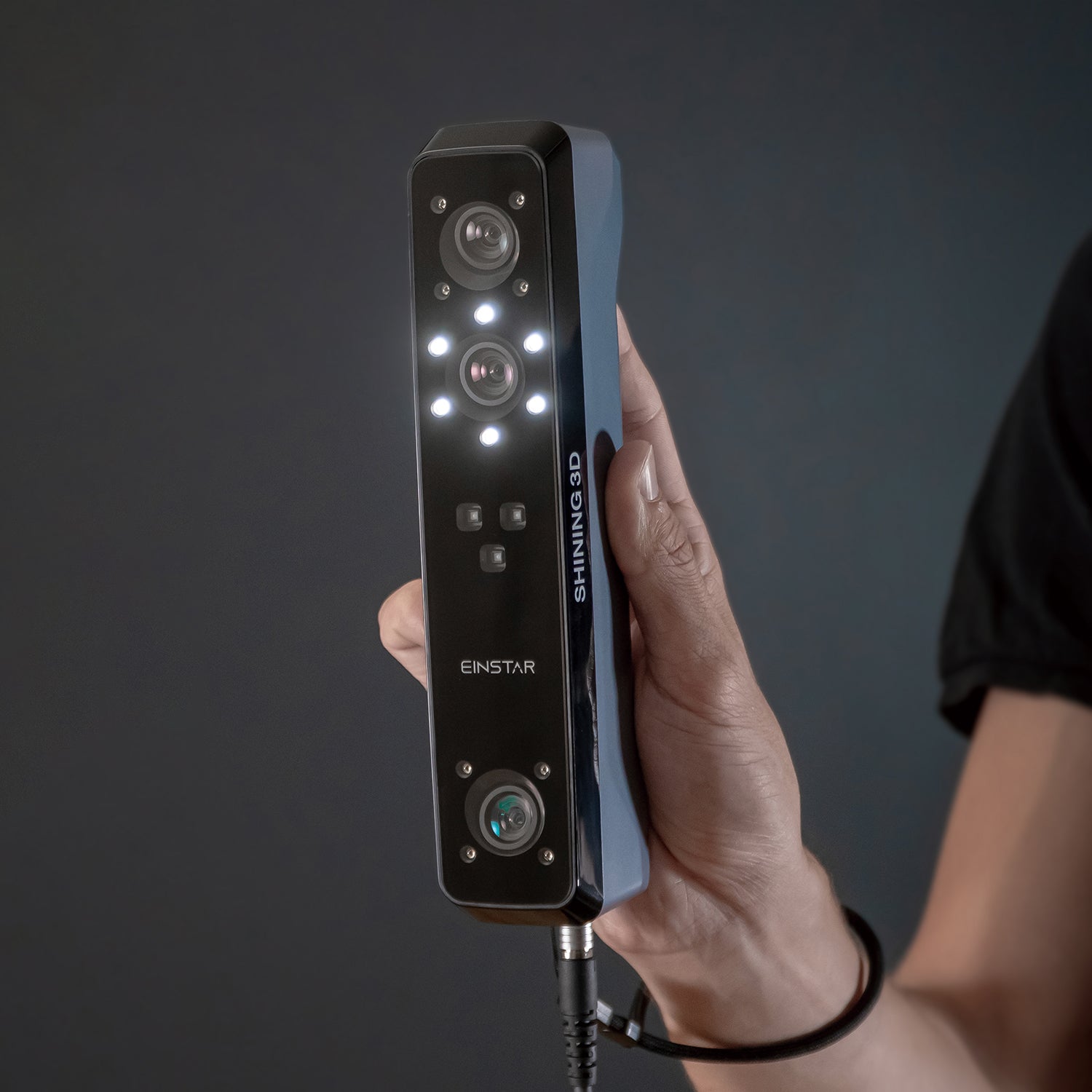

EINSTAR Portable 3D Scanner
